What Is a Immobilizer System? How It Works With Car ECU

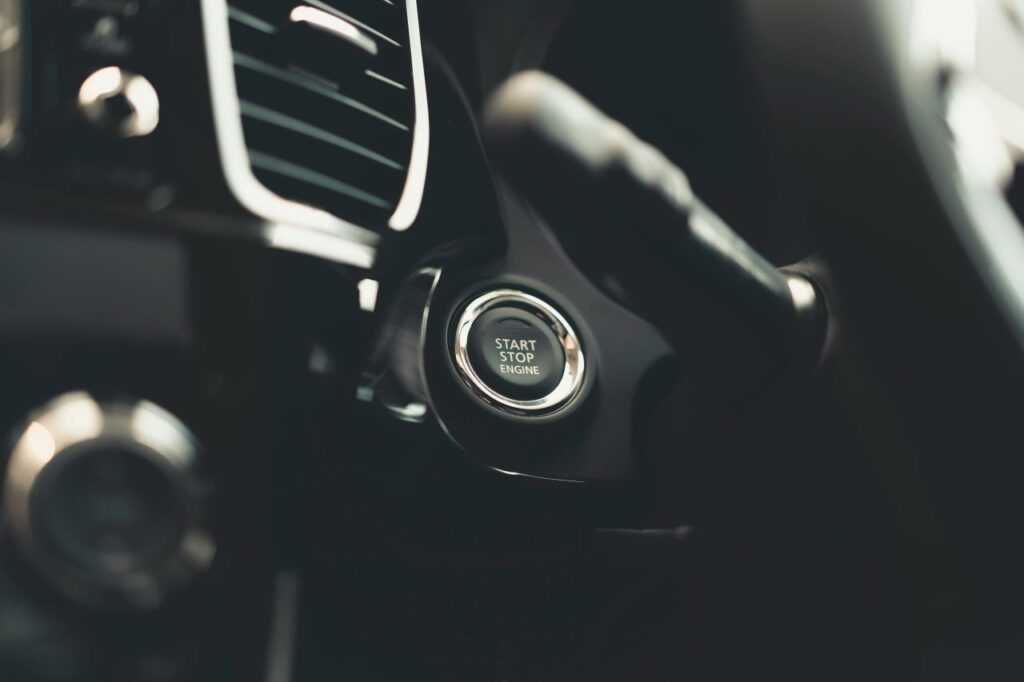

Each time you insert your key in your ignition or press the start button on your car, something spectacular occurs in the background. A one-way dialogue between your key and the computer in your vehicle is a one-second dialogue. When this talk is successful, then you get started. Otherwise, your car will remain in one place regardless of what one does. This unseen protector is referred to as an immobilizer system and at AZ Cars Locksmith, we feel that every driver should know how it functions.

What Is an Immobilizer System?

An immobilizer system is essentially an electronic anti-theft system that is installed directly into contemporary automobiles. Its single purpose is to ensure that your car will start and not that of anyone. In contrast to the ancient times when a thief could creep beneath the dashboard, and tie a few cords together, getting away with your car, nowadays cars are secured with several layers of digital encryption that makes such a theft virtually impossible.

When someone knows what is an immobilizer system, he or she also knows a paradigm shift in the way the security of a vehicle functions. It has shifted to electronic verifications instead of physical ones. Your key is not simply a piece of metal any more. It is an electronic coded device, which has to identify itself to your car each time you start the engine. In the absence of that evidence, the car just won’t cooperate.

By the end of 1990s, Immobilizer technology had become a standard requirement in the majority of countries, and rightfully so. The effect on the rates of vehicle theft was dramatic. Nowadays, practically all vehicles produced over the last twenty or so years are fitted with some form of this technology and the systems have since become increasingly advanced over the years.

The Key Players: What an Immobilizer System Consists Of

It is good to be familiar with the three major components before delving into how all this functions as a whole.

1. The Smart Key Fob or the Transponder Key

The appearance of your car key is normal, but within the plastic casing is a small microchip known as a transponder. This chip contains a special digital code which is unquestionably programmed to suit your very own vehicle. The code of any two chips is not the same, and this fact is one of the reasons why the system is so secure.

2. The Antenna Ring

This little ring of wire, placed about your ignition cylinder, does something smart. As you approach the ignition with your key, it emits a low frequency radio signal to activate the transponder chip in your key. It is a localized, short-range signal which operates the chip wirelessly and does not require any physical contact.

3. The ECU (Engine Control Unit)

This is what is called the brain of your vehicle. The ECU controls the process of fuel injection, ignition timing and it is also the ultimate decision maker when it comes to the immobilizer process. Upon getting the code transmitted by your transponder chip, it matches it with the one it has in memory. It is only after the two codes match that the ECU will issue the green light to start the engine.

How It All Works Together: The Step-by-Step Process

Now that you are aware of the parts, here is what really occurs when you are attempting to start your automobile.

When you insert your key or enter the vicinity of your smart key fob, the antenna ring sparks the transponder chip with that low frequency radio pulse. The chip, which has been turned on, answers by transmitting its special encrypted code back through the antenna ring. This signal is sent to the ECU which instantly commences comparing it with the authorized code in its memory.

All this takes a mere second. In case of same codes, the ECU will clear the green light of the engine and the fuel system and ignition will be permitted to operate normally and your car will start. When there is no match between the codes, or no known code is found, the ECU blocks both systems. No fuel will reach the engine, no ignition will take place and the car will not move. This is what an immobilizer system is doing in action.

This has been advanced by modern systems through the use of rolling code technology. Instead of using a fixed code which can theoretically be duplicated with advanced equipment, rolling code systems use a brand new encrypted code with each ignition cycle. A shared algorithm is used to calculate the next valid code by the key and the ECU (using the same algorithm). It is true that even with someone intercepting today’s code, it would be utterly useless the next time a start attempt is attempted. This renders contemporary immobilizer systems extremely hard to overcome.

Typical Immobilizer Issues that Car Owners Experience

Knowing what an immobilizer system is, also implies knowing when it is not working properly. Although these systems are very reliable, they do not totally avoid problems.

1. Broken or Old Transponder Chip

Your key contains a chip that is fragile. The chip may cease to transmit correctly due to physical damage, water exposure, high temperatures or being exposed to strong magnets. Without the presence of the correct key, your car will fail to start because your ECU is unable to read the code.

2. Key Programming Loss

In some cases, a key may become unprogrammed because of electrical interference or software glitch in the ECU. The physical key in question remains compatible with the lock, but the digital identity has disappeared, thus the car considers it an unknown device.

3. Flimsy Key Fob Battery

With push-button start vehicles and smart keys, a fading battery in the fob can weaken the signal to the extent that it cannot be picked up by the antenna ring. This usually manifests itself in the form of intermittent starting issues before it breaks down altogether.

4. ECU Malfunctions

In isolated cases, the ECU itself may become faulty that influences the way it reads or stores transponder codes. Such a problem is normally one that needs professional diagnostic equipment to diagnose and rectify appropriately.

5۔ Antenna Ring Damage

When the antenna coil surrounding the ignition is damaged due to rough handling, attempted break-ins or just due to wear and tear, then that coil may not be able to energize the transponder chip in a reliable and consistent manner.

The Reason You Should Never Ignore an Immobilizer Warning

Your flashing key symbol on the dashboard or a car that cranks, but will not start is your car saying that there is something wrong with the immobilizer circuit. These signs are not to be ignored and you will be stuck at the most unfortunate time. Better still, trying to bypass or hack into an immobilizer system, without the required expertise, may end up corrupting the programming in the ECU and transforming a relatively minor fix into an extremely expensive repair.

That is precisely the reason why it is important to have a reliable automotive locksmith by your side. At AZ Cars Locksmith, we deal with immobilizer problems on a daily basis and we know more than anybody about your key and the ECU of your car.

How AZ Cars Locksmith can Help.

When your immobilizer system is not working, you should have a team that has experience with these systems and not somebody who will guess his way out of it. AZ Cars Locksmith will take the proper equipment, the proper training and the proper care to any job we do.

• Transponder Key Programming: Our technicians possess some of the highest grade equipment used in programming that enables us to code a brand new transponder key directly to the ECU of your car. You lost your only key or just need a good spare one, we will have it done immediately without long appointment with the dealership and paying an overcharge. We make sure that the new key interprets perfectly with your immobilizer system that you will never doubt the security of your vehicle. Any key we write is seriously tested before we think we have finished the service.
• Diagnostics and Repair of immobilizer: your car does not start, and you believe that it is the immobilizer that is causing the problem? Our team carries out a comprehensive check-up diagnosis to identify the location of malfunction. We check the transponder signal, the antenna ring and the pathway of ECU communication in order to detect the fault precisely and effectively. When we know what kind of an immobilizer system failure in your particular car is doing, we implement the appropriate repair instead of a workaround. We always aim at proper and lasting solution that you can rely on in the long run.
• Key Fob Replacement and Sync: Lost or broken key fob is one of the most frequent calls that we get and we do it quickly and accurately every time. We order quality replacement fobs, trim the blade to the specifications required by your car, and program the fob to work in harmony with your car immobilizer and central locking system. You leave with a fully functional key which functions perfectly the first time you use it and you are assured of the safety of your vehicle.
• Emergency Lockout and Immobilizer Assistance: Lockout is a stressful experience, and when your immobilizer goes on top of that, and the car will not start, the frustration sets in within seconds. Our mobile unit arrives right at your doorstep with all the equipment needed to tackle both issues simultaneously, and they do it very fast and in a precise manner so as not to inflict any harm on the current security systems. We know a sense of urgency, and we do not take any emergency call lightly.

Why Choose AZ Cars Locksmith

We do not lack locksmiths in the region, but AZ Cars Locksmith is distinguished in aspects that are important to real people in real life.

• Certified Automotive Locksmith Technicians: All our staff are specifically trained in automotive security systems and the newest immobilizer and ECU technology in the new vehicles. We are not generalizing, we specialize. It translates to the fact that when you call us or bring your vehicle to us, you are getting a person, who truly knows what an immobilizer system is and how to operate with it at the highest professional level. Our locksmiths ensures that we remain up to date with new models of vehicles and the latest security technology in order to be prepared.
• Mobile Service at Your Doorstep: Car problems are seldom convenient and where they take place are hardly convenient, that is why AZ Cars Locksmith is a completely mobile service. And, be it in a parking lot, stuck in the house, or on the shoulder, we send a technician to your place with all the equipment necessary to fix the issue right there. No waiting rooms, no towing, and the quickest and most professional assistance that you need wherever you want it.
• Open and Fair Pricing: This is because we are transparent and honest when it comes to the prices of anything, and we do not charge anything extra and then reveal it after the fact. We keep our quotes simple, as we value your time and your budget and we would like you to feel confident at the very beginning. You will never be in the dark of what you are actually paying and why and this is the type of honesty that will bring our customers back.
• Quick Response Times: When your car is not starting, time is of the essence and AZ Cars Locksmith values quick turnout to ensure that you are not kept waiting longer than is necessary. We want to have you back on the road within the shortest time possible without at any time compromising on quality or safety. We do not oppose speed and thoroughness, and on each and every call that we make, we have speed and thoroughness.
• Every Makes and Models: Domestic cars, luxury European imports, and all the rest in between, our staff have a first hand experience of the entire gamut of immobilizer systems currently in use. We have the equipment, we have the expertise to deal with your basic transponder chip equipped car, or your advanced rolling code smart key system with confidence and accuracy.

Final Thoughts

The immobilizer system on your car is also among the most important safety features that your car possesses and the least known to your typical drivers. With this new-found understanding of what is an immobilizer system and how it interacts with your ECU, you are now in a better position to know when something is amiss and the appropriate course of action to take to rectify the situation. The solution is not necessarily complex because the technology is advanced, and you have the right people on your side. You can leave the security of your vehicle in the hands of professionals that will treat your vehicle as theirs.
